Metal Properties

Material Properties - Metals continued

​​​​​​​Mr BILLINGTON

Aluminium is a silvery-white, soft, nonmagnetic, ductile metal that makes up around 8% of the earths crust. After Iron, it is the most widely used of all the metals. It is incredibly chemically reactive and is therefore rarely found in its pure form. Typically it is found with other minerals with the most common ore known as Bauxite. As with most non-ferrous metals, Electrolysis is used to extract the required metal from the ore

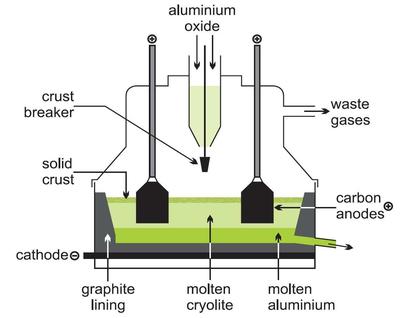

  • Aluminium Ore, Bauxite, is extracted from the earth through mining as a orange coloured rock
  • Ore is  purified to pure aluminium oxide, alumina, using a strong solution of sodium hydroxide
  • Aluminium oxide is melted using molten cryolite, an aluminium compound with a lower melting point.
  • Electrolysis can then occur by a high current being applied to the carbon (graphite) anode and cathode though the solution
  • Aluminium is attracted to the negative cathode and sinks to the bottom of the tank where it tapped off
  • Oxygen forms on the positive anode and reacts with the carbon forming carbon dioxide which is released at the top

------------------------------------------------------------------------------------------------------

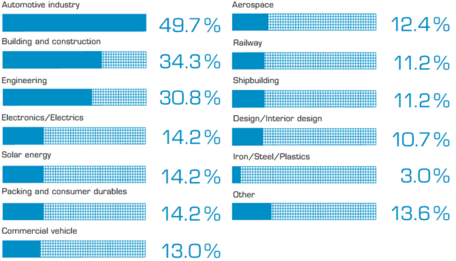

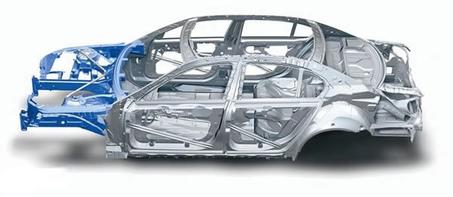

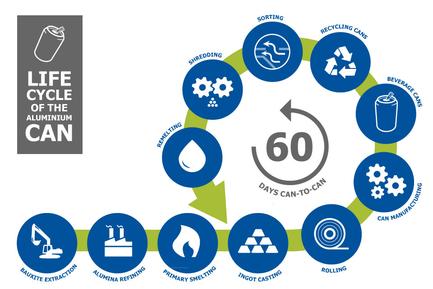

A large proportion of aluminium used for new products (50%) is from recycling, requiring only 5% of the energy used to produce it. It can be repeatedly recycled and it is estimated that two-thirds of all the aluminium manufactured since commercial production started in 1886 is still in use today. Of the 45 million tonnes produced annually, a large proportion is used in the transport industry forming the bodies of cars, planes trains and bikes. It is almost always alloyed with other materials to improve its mechanical properties

The key reason for its success globally is its excellent corrosion resistance, due to a protective layer of aluminium oxide, and importantly its strength-weight ratio. This is due to it's low density of around a 1/3 of steel but high tensile strength. It is for this reason it is rapidly replacing steel in the transport industry to save weight and resultant fuel use. Equally, the malleability of aluminum, or its ability to be deformed, is higher compared to steel and can be formed into far more complex, intricate shapes

Other key useful properties include;
  • Good conducter both thermally and electrically, 59% of Copper
  • Resistance to low temperatures compared to steel, actually becoming stronger as opposed to more brittle
  • Non-Magnetic and often used in x-rays to avoid interferance
  • Non-toxic and naturally occuring in some food products
  • Easily machinable due to its lower density requiring less energy than steel
  • Reflective for both visible light and radiated heat

------------------------------------------------------------------------------------------------------

There are, however, some drawbacks to Aluminium use that must be considered before it's industrial application;

  • Far higher raw material cost than steel due to the electrolysis process and need to alloy with other metals
  • Lower hardness than steel, easily scratched/dented
  • Lightweight - althougth typically and advantage, it's use in cars makes them more likely to flip in a crash situation
  • Oxidisation over time if untreated causing a white residue/pitting
  • Water stained easily if exposed or untreated
  • Difficult to join - requires specialist welding, tape of rivets
  • Low melting point compared to Steel (659 > 1500 C)

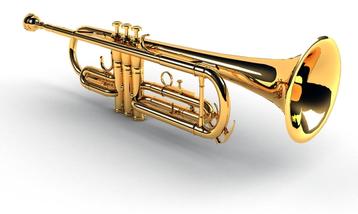

Brass is an alloy of Copper and Zinc that is a type of 'Substitutional Alloy', meaning atoms from each replace each other in the same structure. It is used for it's high malleability allowing it to be easily formed into complex shapes and it's corrosion resistance. The most widely used is it's acoustic resonance which allows musical notes to resonate in brass instruments such as trumpets & Saxophones as well as percussion instruments such as symbols & bells


Lead is often added to Brass in order to increase it's machinability but due to it's toxicity has been reduced to around 0.5-1.5% and often legally restricted in certain countries.


Other useful properties of Brass are;

  • Bright gold appearance, but can be reddish-gold
  • Low melting point (900 C)
  • Good thermal conductivity
  • Corrosion resistance, even to salt water but prone to oxidisation
  • Non-Magnetic, easier to separate from other metals for recycling


Disadvantages to it's use are similar to that of Aluminium due to it's low hardness but also a discolouring over time if not maintained
